e-Break

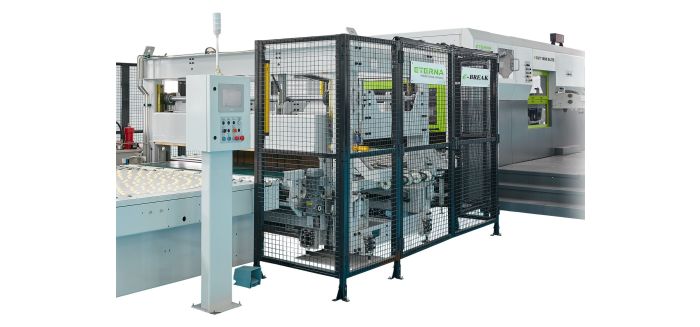

- The e-BREAK is a compact, high-performance stand-alone separator and layer-arranger.
- Capable of the intelligent and completely automated management of flows, it can be entirely adapted to your requirements.
- The e-BREAK will save you between two and six operators and again will ensure the uninterrupted functioning of your die-cutter.
| Batch Height | |
|---|---|
| Air Pressure | 6 bars |
| Layer Weight | Max. 150 kg |
| Rated Power | 10 KVA |
| Number of Batchs in Longitudinal Axis | Max. 5 |
| Number of Batchs in Transversal Axis | Max. 10 |
| Sheet Size | |
| Max. Belt Speed | 260 m/min |
| Corrugated Board | E-AB Flute |
| Cardboard (solid) | thickness ≥1 mm (subject to paper quality) |
| Cardboard (depending on quality), up to | 2000 gsm (thickness |
| Minimum Sheet Size | 650 × 450 mm |
| Maximum Sheet Size | 1650 × 1200 mm |
| Maximum Mechanical Speed | 5800 s/h |
| Maximum Cutting Size | 1630 × 1180 mm |
Write Your Own Review
Specifications
Dimensions & weight
| Maximum Cutting Size | 1630 × 1180 mm |
Capability
| Minimum Sheet Size | 650 × 450 mm |
| Maximum Sheet Size | 1650 × 1200 mm |
| Maximum Mechanical Speed | 5800 s/h |
Processed materials
| Paper (depending on quality), min. | 80 gsm (thickness |
| Corrugated Board | E-AB Flute |
| Cardboard (solid) | thickness ≥1 mm (subject to paper quality) |
| Cardboard (depending on quality), up to | 2000 gsm (thickness |
Eterna
| Batch Height | |
| Air Pressure | 6 bars |
| Layer Weight | Max. 150 kg |
| Rated Power | 10 KVA |
| Number of Batchs in Longitudinal Axis | Max. 5 |
| Number of Batchs in Transversal Axis | Max. 10 |
| Sheet Size | |
| Pile Height | Max. 2000 mm |
| Max. Belt Speed | 260 m/min |
| Plastic Corrugated Board | 1-11 mm |
