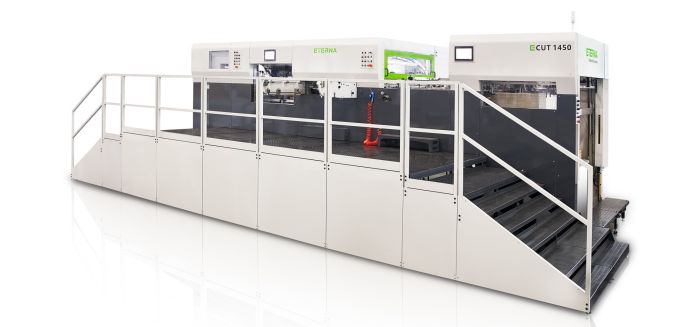

ECUT 1450 E

TOP FEEDER

• Manual non-stop feeding system (Automatic non-stop feeding system can be chosen as optional);
• Adjustable side blower with scale indication;
• Suction head multi direction adjustment system;
• Safety photo sensor system at feeding table;
• Main feeding table motorized side shift with centering function when it is at low position;
• Feeder head with motorized up and down adjustment;
• Self-adaptive system to adjust the height of the suction head adapted to the pile height in machine operation;

SIDE POSITIONING SECTION

• Anti-static stainless steel transport table;
• Transport belt systme with side guide and automatic tension function;
• Double sheet detector (ultrasonic double sheet detector can be chosen as optional for thin paper);
• Upper sheet pressing frame with lifting device (Automatic lifting device can be chosen as optional);
• Sheet pressing device can be adjusted as a whole to adapt to different types of paper, cardboard and corrugated board;
• Sheet feeding phase adjustment and sheet slow down device to make different types of sheet better adapt to the requirements of gripper bar bite and front gauge;
• Mechanical push and pull side guide;

DIE-CUTTING SECTION

• High strength die-cutting frame, optimized to distribute pressure evenly;
• High precision mobile platen and driver;
• Die-cutting station safety door plus electrical and mechanical safety system;
• Die chase positioning and automatic locking system, centerline system making the cutting die and stripping die centered quickly and precisely;
• Synthetic supporting plate positioning and locking system, cutting plate micro-adjustment system (automatic locking system can be chosen as optional);
• Pneumatic clutch/break and safety control system;
• Motorized pressure adjustment system (die cutting pressure detection and display system can be chosen as optional);
• Gripper bar and driving chain;
• Gripper bar chain guide rails are made of synthetic materials;
• High quality index unit and gears for gripper bars;
• Overloading protection torque limit system for gripper bars and chains;
• Photo sensor detection system when gripper bar and sheets arrive and depart;
• Left and right front lay locking blocks, separate adjustments available;
• Automatic forced lubrication system recycles fluid and is equipped with oil gauge and interruption alarm;
• Automatic main drive chain lubrication.

STRIPPING SECTION

• Center line system for quick stripping die set up and change over, upper and lower frames;
• Fully open-type upper stripping frame, and front/back micro-adjustment system for upper stripping tools;
• Push button of gripper opening is added for easy taking out the production sample at stripping section;
• Lower stripping pin system;
• Front edge waste removal system and center line system for quick setup and changeover of front edge waste stripping tool;
• Full stripping with/without lead edge waste stripping convertible by one button, no tool change, more operator friendly and safe operation;
• Safety door at stripping station; electrical and mechanical safety system.

DELIVERY SECTION

• Delivery lifting table and pile pallet;
• Delivery slow down brush;
• Non-stop auxiliary delivery table;
• Electrical batch counter and tape inserter;
• Front jogger device;
• Motorized side joggers;
• Motorized delivery back gauge and sheet tail supporting device;
• Safety door at delivery section; electrical and mechanical safety system.

ELECTRCALS

• Main motor and variable frequency control system
• Touch screen and control panel;
• PLC system to control machine running and trouble monitoring;
• CE standard electrical components and circuit;
• PLC remote monitoring system (Optional).
