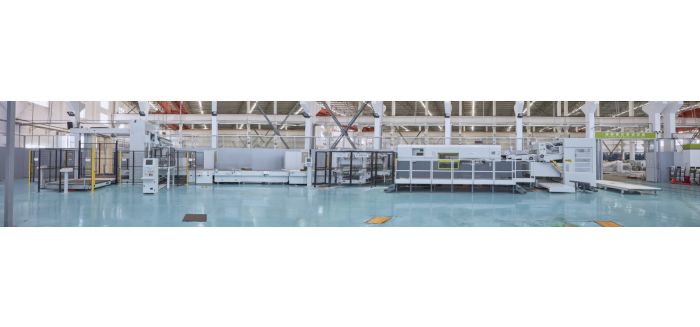

e-Load
Pile-Lifting Table
- The pile is centered by means of photo cells controlling the lateral movement of the table.
Pusher
- A batch of a specified height is taken from the top of the pile without disturbing it.
Joggers
- The batch of sheets are lifted off the belt to assist the action of the joggers. A blower assists with aligning the most difficult types of cardboard.
Pile Evacuation
- The empty pallet, the carrier plate or remains of the pile are evacuated on rollers in the direction of travel, and then laterally by means of a pusher.
Gauge
- The shingled stream is arranged by a mobile gauge.
Shingled Stream
- The machine is fed precisely, regularly and continuously.
| Batch Height | Max. 250 mm Min. 40 mm |
|---|---|
| Air Pressure | 6 bars |
| Jogger Sizes | ±135 mm |
| Layer Weight | Max. 150 kg |
| Material | cardboard, micro flute, single and double wall corrugated board |
| Speed of the Pile Conveyor | 14.5 m/min |
| Speed of the Lateral Pallet Pusher | 42 m/min |
| Speed of the Apron | ±125 mm |
| Pile Weight | Max. 1300 kg |
| Pallet Height | Max. 250 mm |
| Max. Belt Speed | 260 m/min |
| Corrugated Board | E-AB Flute |
| Cardboard (solid) | thickness ≥1 mm (subject to paper quality) |
| Cardboard (depending on quality), up to | 2000 gsm (thickness |
| Minimum Sheet Size | 650 × 450 mm |
| Maximum Sheet Size | 1650 × 1200 mm |
| Maximum Mechanical Speed | 5800 s/h |
| Maximum Cutting Size | 1630 × 1180 mm |
Write Your Own Review
Specifications
Dimensions & weight
| Maximum Cutting Size | 1630 × 1180 mm |
Capability
| Minimum Sheet Size | 650 × 450 mm |
| Maximum Sheet Size | 1650 × 1200 mm |
| Maximum Mechanical Speed | 5800 s/h |
Processed materials
| Paper (depending on quality), min. | 80 gsm (thickness |
| Corrugated Board | E-AB Flute |
| Cardboard (solid) | thickness ≥1 mm (subject to paper quality) |
| Cardboard (depending on quality), up to | 2000 gsm (thickness |
Eterna
| Batch Height | Max. 250 mm Min. 40 mm |
| Air Pressure | 6 bars |
| Jogger Sizes | ±135 mm |
| Layer Weight | Max. 150 kg |
| Material | cardboard, micro flute, single and double wall corrugated board |
| Speed of the Pile Conveyor | 14.5 m/min |
| Speed of the Lateral Pallet Pusher | 42 m/min |
| Speed of the Apron | ±125 mm |
| Pile Weight | Max. 1300 kg |
| Pallet Height | Max. 250 mm |
| Pile Height | Standard 1900 mm |
| Max. Belt Speed | 260 m/min |
| Plastic Corrugated Board | 1-11 mm |
