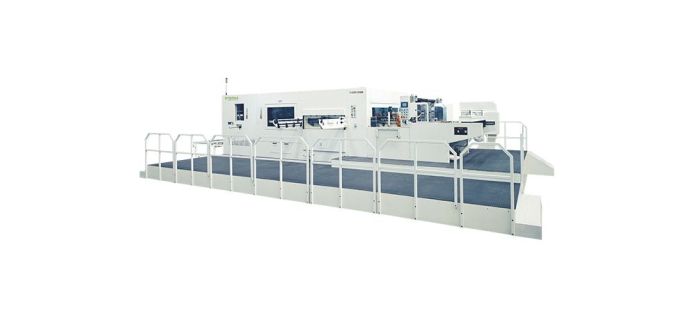

ECUT 2100 S
CALL US :+31 736 277 711
Address
Imported top quality feeding belt to handle wide range materials
FEEDER
- Dynamic torque servo motor driven differential speed belt lead edge feeder;
- Imported top quality feeding belt to handle wide range materials, especially for warp corrugated sheet;
- Pneumatic side push joggers (left and right side).
FRONT LAY WITH SLOW DOWN AND ALIGNMENT GUIDING ROLLER
- Sheet arrives at front lay with servo motor controlled slow down action for precise registration;
- Side alignment system with left or right angle degree and pressure adjustable rollers, alignment side at choice in accordance with the printing register side.
DIECUTTING SECTION
- 7 pieces of gripper bar each with 24 grippers;
- Safety door and diechase safety locking system;
- Complete lost sheet control throughout the entire machine;
- Centerline system compatible to Centerline Ⅱ for quick change over and short set up time;
- Air cushion underneath the cutting plate for easy cutting plate floating in and out.
STRIPPING SECTION
- Centerline system with quick lock pins on upper frame;
- Centerline system compatible to Centerline Ⅱ for quick stripping die set up;
- Motorized upper frame suspending hoister up to 500 mm;
- Lead edge removal system to remove gripper margin completely.
DELIVERY SECTION
- Automatic delivery fork with non-stop air cylinder to protect the sheets from scratches;
- Electronic batch counter;
- Non-stop bundle delivery to ensure continuous productivity and operation efficiency.
| Gripper Margin Adjustable Range | ±3 mm |
|---|---|
| Machine Dimensions | 11172 × 5912 × 2565 mm (L × W × H) |
| Net Weight | 45 ton |
| Min. Stitching Distance | 5.5 mm |
| Min. Gripper Margin | 15 mm |
| Corrugated Board | E, C, B, A, AB flute and other flute up to 11mm |
| Cardboard (solid) | thickness ≥1 mm (subject to paper quality) |
| Cardboard (depending on quality), up to | 2000 gsm (thickness |
| Minimum Sheet Size | 650 × 450 mm |
| Maximum Sheet Size | 1650 × 1200 mm |
| Maximum Mechanical Speed | 5800 s/h |
| Max. Cutting Pressure | 500 ton |
| Total Power Requirement | 63 kw |
| Electrical Power | 380V, 3 phase, 50HZ |
| Maximum Cutting Size | 1630 × 1180 mm |
| Inner Chase Size | 2110 × 1330 mm |
| Cutting Rule Height | 23.8 mm |
Write Your Own Review
Specifications
Dimensions & weight
| Maximum Cutting Size | 1630 × 1180 mm |
| Inner Chase Size | 2110 × 1330 mm |
| Cutting Rule Height | 23.8 mm |
Electrical
| Total Power Requirement | 63 kw |
| Electrical Power | 380V, 3 phase, 50HZ |
Capability
| Minimum Sheet Size | 650 × 450 mm |
| Maximum Sheet Size | 1650 × 1200 mm |
| Maximum Mechanical Speed | 5800 s/h |
| Max. Cutting Pressure | 500 ton |
Processed materials
| Paper (depending on quality), min. | 80 gsm (thickness |
| Corrugated Board | E, C, B, A, AB flute and other flute up to 11mm |
| Cardboard (solid) | thickness ≥1 mm (subject to paper quality) |
| Cardboard (depending on quality), up to | 2000 gsm (thickness |
Eterna
| Gripper Margin Adjustable Range | ±3 mm |
| Machine Dimensions | 11172 × 5912 × 2565 mm (L × W × H) |
| Net Weight | 45 ton |
| Min. Stitching Distance | 5.5 mm |
| Min. Gripper Margin | 15 mm |
| Plastic Corrugated Board | 1-11 mm |
