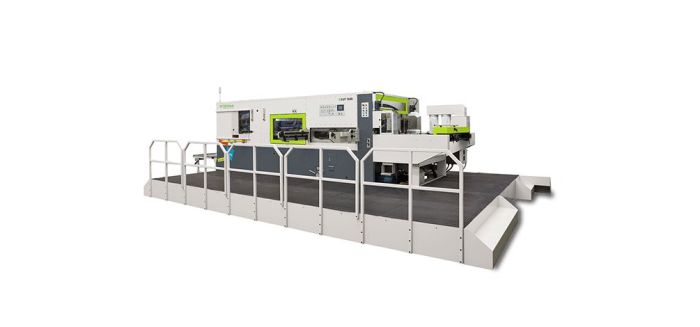

ECUT 1620 SA
Feeder runs smoothly with higher productivity and less stoppage
Feeder runs smoothly with higher productivity and less stoppage, sheet delivery is smooth and piles are nice and neat;
Precise registration and uniformed cutting platen pressure;
Center line system for quick tool set up and job changeover ;
More Information
Minimum Gripper Waste
12 mm
Air Pump Displacement（without H）
1.05 m3/min
Air Pump Displacement（with H）
0.7 m3/min
Cutting Pressure Adjusting Range
±1.5 mm
Delivery Pile Height（without H）
320 mm
Machine Dimensions（without H）
9980 × 5670 × 2480 mm
Machine Dimensions（with H）
8836 × 6000 × 2780 mm
Maximum Cutting Pressure( Ajustable）
400 T
Minimum Gripper Margin
6-12 mm
Stock Range
E/ B/ C/ A/ AB flute (1~8.5mm)
Corrugated Board
E/B/C flute, thickness up to 4.5 mm
Cardboard (solid)
thickness ≥1 mm (subject to paper quality)
Cardboard (depending on quality), up to
2000 gsm (thickness
Minimum Sheet Size
650 × 450 mm
Maximum Sheet Size
1620 × 1200 mm
Maximum Mechanical Speed
5000 s/h
Maximum Cutting Size
1600 × 1180 mm
Cutting Rule Height
23.8 mm
Specifications
Dimensions & weight
Maximum Cutting Size
1600 × 1180 mm
Cutting Rule Height
23.8 mm
Capability
Minimum Sheet Size
650 × 450 mm
Maximum Sheet Size
1620 × 1200 mm
Maximum Mechanical Speed
5000 s/h
Processed materials
Paper (depending on quality), min.
80 gsm (thickness
Corrugated Board
E/B/C flute, thickness up to 4.5 mm
Cardboard (solid)
thickness ≥1 mm (subject to paper quality)
Cardboard (depending on quality), up to
2000 gsm (thickness
Eterna
Minimum Gripper Waste
12 mm
Air Pump Displacement（without H）
1.05 m3/min
Air Pump Displacement（with H）
0.7 m3/min
Cutting Pressure Adjusting Range
±1.5 mm
Delivery Pile Height（without H）
320 mm
Machine Dimensions（without H）
9980 × 5670 × 2480 mm
Machine Dimensions（with H）
8836 × 6000 × 2780 mm
Maximum Cutting Pressure( Ajustable）
400 T
Minimum Gripper Margin
6-12 mm
Stock Range
E/ B/ C/ A/ AB flute (1~8.5mm)
