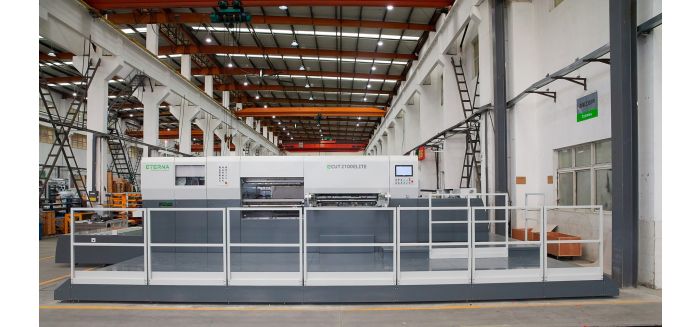

ECUT 2100 ELITE CLASS: SA
CALL US :+31 736 277 711
Address
LEAD EDGE FEEDER
LEAD EDGE FEEDER
- Bottom wheel-type suction box, equipped with air blower and automatic damper, to make the air volume adjustable by frequency converter;
- Movable back gauge with up and down adjustable sheet supporting plate;
- Rear jogger at feeder in preparation for future in line with prefeeder (Optional);
- Pneumatic side push guide plates (left and right sides);
- Left and right hand side guides with separating and synchronizing adjustment available;
- Front guide plate with back and forth, up and down micro-adjustments;
- Automatic pushing frame (Optional);
DIE-CUTTING SECTION
- High strength die-cutting frame;
- High precision mobile platen and driver;
- Die-cutting station safety door plus electrical and mechanical safety system;
- Die chase positioning and automatic locking system, centerline system making the cutting die and stripping die centered quickly and precisely;
- Synthetic supporting plate positioning and safety locking system, cutting plate micro-adjustment system;
- Pneumatic clutch/break and safety control system;
- Motorized pressure adjustment system and indication of die cutting pressure by means of digital read out;
- Gripper bar and driving chain;
- Gripper bar chain safety locking device;
- Gripper bar chain guide rails are made of synthetic materials;
- High quality index unit and gears for gripper bars;
- Overloading protection torque limit system for gripper bars and chains;
- Photo sensor detection system when gripper bar and sheets arrive and depart;
- Left and right front lay locking blocks, separate adjustments available;
- Automatic forced lubrication system recycles fluid and is equipped with oil gauge and interruption alarm;
- Automatic main drive chain lubrication;
- Pneumatic die-cutting plate locking device.
STRIPPING SECTION
- Center line system for quick upper and middle stripping die set up and change over;
- Fully open-type upper stripping frame, and front/back micro-adjustment system for upper stripping tools;
- Lower stripping frame mechanism with center line system for quick lower stripping die set up and change over (Optional);
- Push button of gripper opening is added for easy taking out the production sample at stripping section;
- Lower stripping pin system (Optional);
- Front edge waste removal system and center line system for quick setup and changeover of front edge waste stripping tool;
- Full stripping with/without lead edge waste stripping convertible by one button, no tool change, more operator friendly and safe operation;
- Safety door at stripping station; electrical and mechanical safety system.
DELIVERY SECTION
- Conveyor belt type delivery table;
- Conveyor belt bundle delivery table can be prepared for future connection with breaker for automatic in line operation;
- Non-stop auxiliary delivery table;
- Batch delivery conveying control system;
- Electrical batch counter;
- Front jogger device;
- Motorized side joggers with side sheet supporting device;
- Motorized delivery back gauge and sheet tail supporting device;
- Safety door at delivery section; electrical and mechanical safety system.
DELIVERY SECTION
- Conveyor belt type delivery table;
- Conveyor belt bundle delivery table can be prepared for future connection with breaker for automatic in line operation;
- Non-stop auxiliary delivery table;
- Batch delivery conveying control system;
- Electrical batch counter;
- Front jogger device;
- Motorized side joggers with side sheet supporting device;
- Motorized delivery back gauge and sheet tail supporting device;
- Safety door at delivery section; electrical and mechanical safety system.
| Air Compressor Displacement | 1.05m3/min, 12 kg/cm² |
|---|---|
| Net Weight | 45 tons |
| Corrugated Board | E/ B/ C/ A and AB flute(subject to cutting rule length, creasing length, sheet quality, etc.) |
| Cardboard (solid) | thickness ≥1 mm (subject to paper quality) |
| Cardboard (depending on quality), up to | 2000 gsm (thickness |
| Minimum Sheet Size | 780 mm × 550 mm |
| Maximum Sheet Size | 1650 × 1200 mm |
| Maximum Mechanical Speed | 5800 s/h |
| Max. Cutting Pressure | 450 tons |
| Total Power Requirement | 47 KW |
| Electrical Power | 380V, 50HZ, three phase |
| Mobile Lower Platen Adjusting Range | ±1.5 mm |
| Maximum Cutting Size | 2080 mm × 1280 mm |
| Inner Chase Size | 2190 mm ×1329 mm |
| Adjustable Gripper Bite Range | 9~18mm (subject to product layout, sheet quality and operation skills, etc.) |
| Cutting Rule Height | 23.8 mm |
Write Your Own Review
Specifications
Dimensions & weight
| Maximum Cutting Size | 2080 mm × 1280 mm |
| Inner Chase Size | 2190 mm ×1329 mm |
| Adjustable Gripper Bite Range | 9~18mm (subject to product layout, sheet quality and operation skills, etc.) |
| Cutting Rule Height | 23.8 mm |
Electrical
| Total Power Requirement | 47 KW |
| Electrical Power | 380V, 50HZ, three phase |
| Mobile Lower Platen Adjusting Range | ±1.5 mm |
Capability
| Minimum Sheet Size | 780 mm × 550 mm |
| Maximum Sheet Size | 1650 × 1200 mm |
| Maximum Mechanical Speed | 5800 s/h |
| Max. Cutting Pressure | 450 tons |
Processed materials
| Paper (depending on quality), min. | 80 gsm (thickness |
| Corrugated Board | E/ B/ C/ A and AB flute(subject to cutting rule length, creasing length, sheet quality, etc.) |
| Cardboard (solid) | thickness ≥1 mm (subject to paper quality) |
| Cardboard (depending on quality), up to | 2000 gsm (thickness |
Eterna
| Air Compressor Displacement | 1.05m3/min, 12 kg/cm² |
| Net Weight | 45 tons |
