e-PAL
CALL US :+31 736 277 711
Address

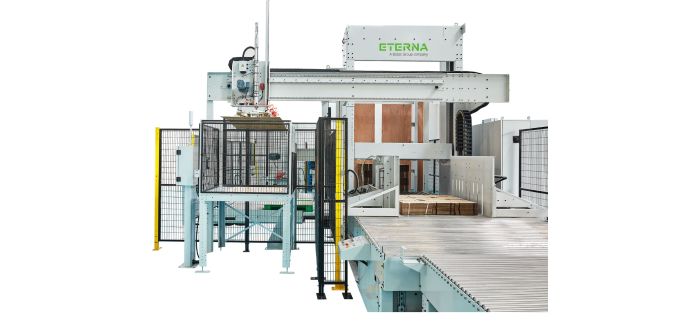

e-Pal
- The e-PAL can automatically stack all layers directly on rollers, on pallet or on plate.
- The e-PAL can be installed with the pile delivery in-line or at right angle at the line.
- It is designed to greatly improve efficiency and reduce labor intensity.
Jogger
- The stack can be automatically arranged and aligned in a specified way, which can realize complicated arrangement combination and improve the production efficiency. The jogger can make the stack squared.
Stacking
- The layers are transported by belts and forks. Each layer as well as the whole pile is squared on all 4 sides.
Palletizing
- The Palletizer runs smoothly until all the stacks are evacuated, neat and squared.
| Batch Height | |
|---|---|
| Batch Weight | Max. 300 kg |
| Pile Weight | Max. 2000 kg |
| Number of Batches | Max. 30（Cross 5 × Longitudinal 6） |
| Sheet Size | |
| Max. Belt Speed | 260 m/min |
| Corrugated Board | E-AB Flute |
| Cardboard (solid) | thickness ≥1 mm (subject to paper quality) |
| Cardboard (depending on quality), up to | 2000 gsm (thickness |
| Minimum Sheet Size | 650 × 450 mm |
| Maximum Sheet Size | 1650 × 1200 mm |
| Maximum Mechanical Speed | 5800 s/h |
| Production Speed | 300 Layer/h |
| Maximum Cutting Size | 1630 × 1180 mm |
Write Your Own Review
Specifications
Dimensions & weight
| Maximum Cutting Size | 1630 × 1180 mm |
Capability
| Minimum Sheet Size | 650 × 450 mm |
| Maximum Sheet Size | 1650 × 1200 mm |
| Maximum Mechanical Speed | 5800 s/h |
| Production Speed | 300 Layer/h |
Processed materials
| Paper (depending on quality), min. | 80 gsm (thickness |
| Corrugated Board | E-AB Flute |
| Cardboard (solid) | thickness ≥1 mm (subject to paper quality) |
| Cardboard (depending on quality), up to | 2000 gsm (thickness |
Eterna
| Batch Height | |
| Batch Weight | Max. 300 kg |
| Pile Weight | Max. 2000 kg |
| Number of Batches | Max. 30（Cross 5 × Longitudinal 6） |
| Sheet Size | |
| Pile Height | Max. 2000 mm |
| Max. Belt Speed | 260 m/min |
| Plastic Corrugated Board | 1-11 mm |
